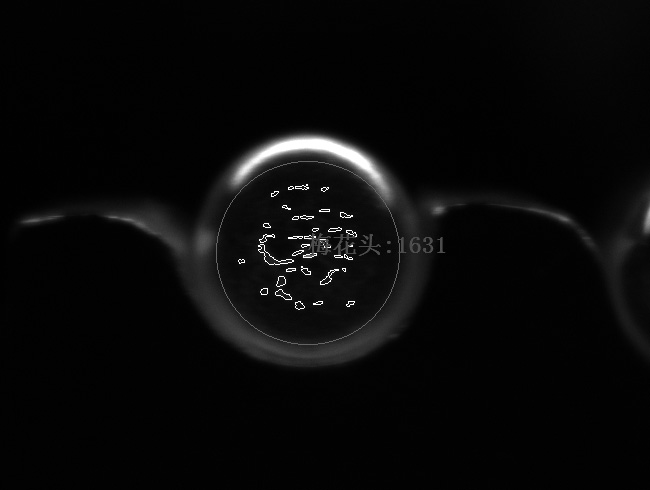

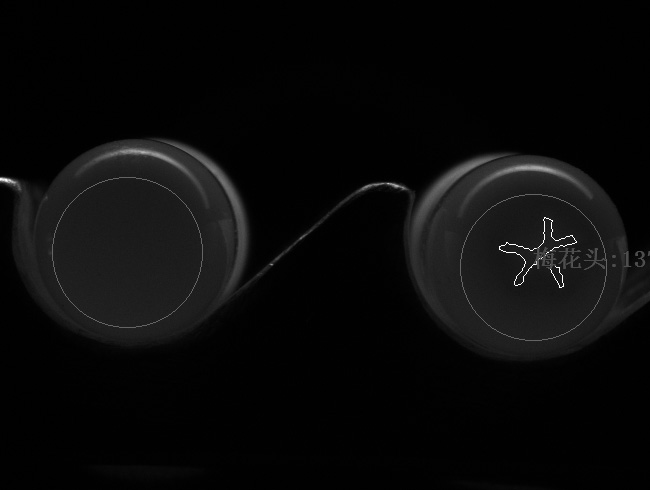

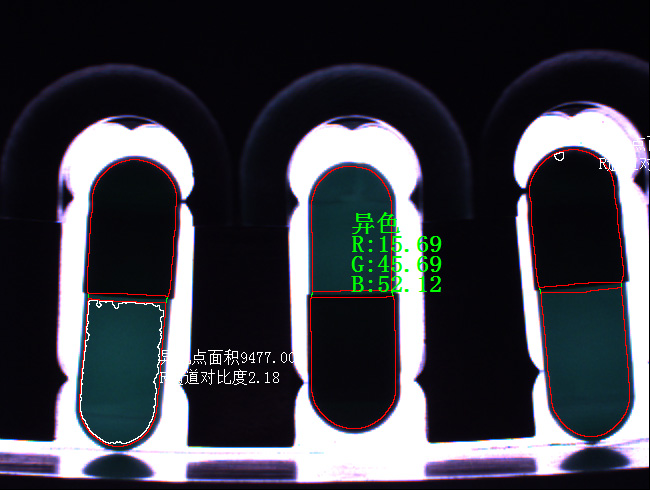

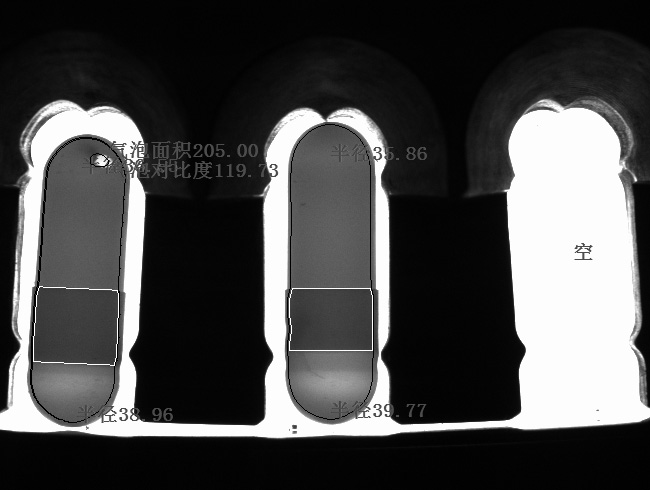

Equipment Description:WH-TH701 automatic capsule separator,the principle of machine vision detection and high-speed image processing technology, on the capsule cap body 360 degrees, two end surface and internal defects automatic detection, no blind area; detection hole, chips, cracks, bubbles, fleck, short, apex concave, clip wrinkle, Topstar, class A and class B and C type of defect, detect color mixing capsule. According to the different product rapid modeling and variety management, the detection results were counted and statistics, automatic rejection of waste products, fast detection speed, high detection accuracy, technical services in place, the equipment is simple and easy to use.
Suitable product | Hollow capsule (opaque, transparent, translucent) |
Test specification | 00#、0#、1#、2# |
Detecting defect | hole,Chips, cracks, gaps, short body / body length, flat shell, in splitting, trimming, single section, a clamping wrinkle, locking, double cap, the top concave, thin and short cap / hat long, bubble, fleck / Harmonia, Topstar, scratches, fold and shred…… |
check the accuracy | 0.1mm |
Detection speed | 80 thousand grains per hour |
Outline dimension | 1600(L)×720(W) ×1475(H)mm |
weight | 300Kg |
power | 1.5KW |
power supply | AC220V,50/60Hz |
Air pressure supply/td> | ≥ 0.5MPa |
Ambient temperature / humidity | 5℃ ~ 35 ℃(42 ℉ ~ 95 ℉)/ 10% ~ 80% |
